Opus 2048
Church of St Clement
Honolulu, Hawai'i
Op. 2048, 1942-2010
39 Stops, 25 Ranks
Entire instrument speaks on 5" wind pressure Bold stops are new or
reconstructed. The new installation
included all new chest actions, solid-state switching, a new, exposed Great
Organ and a new console.
With a generous
assortment of colorful voices, variety of dynamic and other elements, the organ
is more versatile than ever before. Congregational and

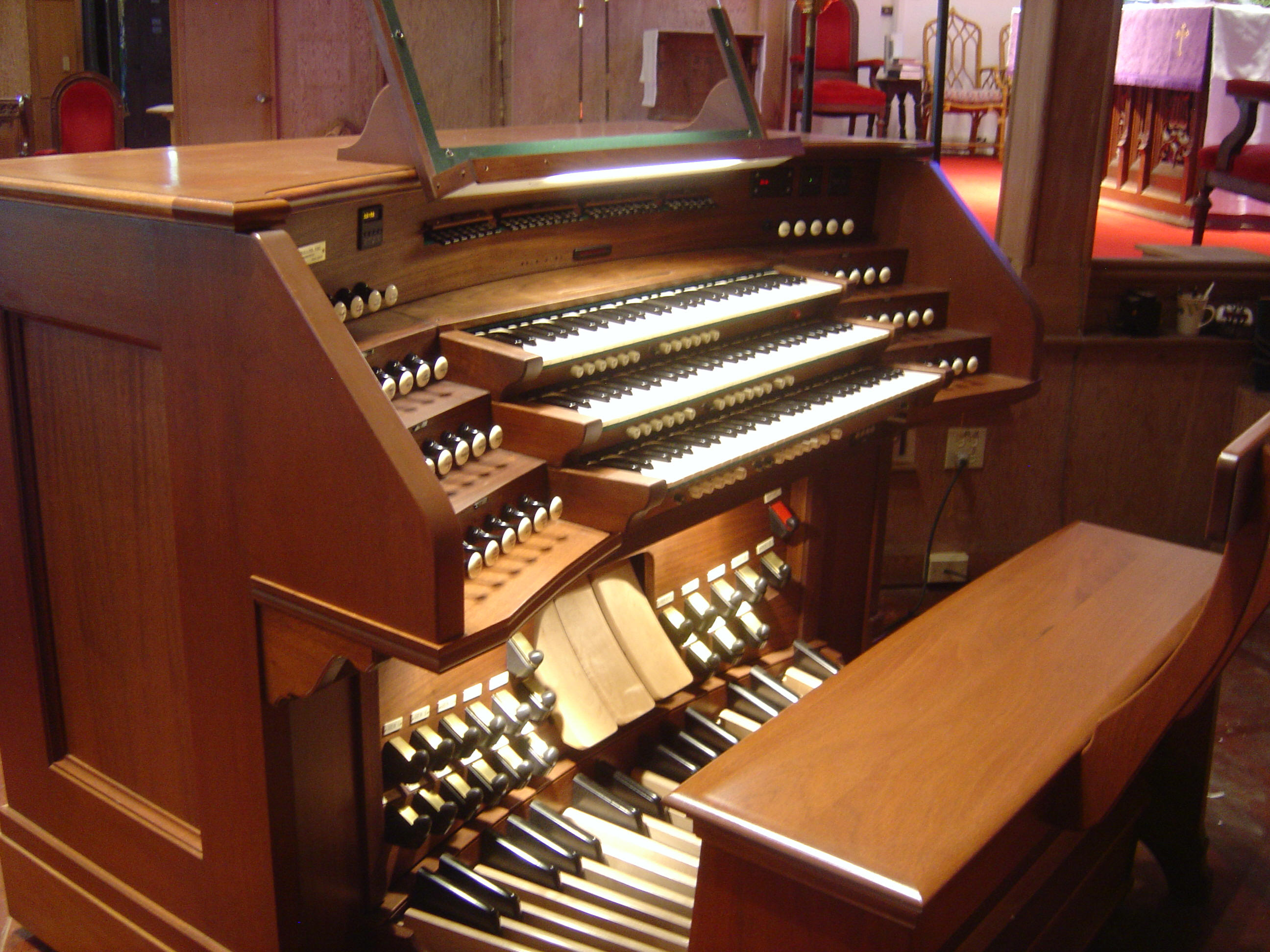

choral singing has been improved, and the effect in the room is impressive. GREAT ORGAN Antiphonal: 8' Diapason (* indicates stops enclosed with Choir Organ) SWELL ORGAN CHOIR ORGAN PEDAL ORGAN The console is a new design for Austin Organs: A Terraced design,
based on the popular Austin CURVED nameboard console, with a French flair.

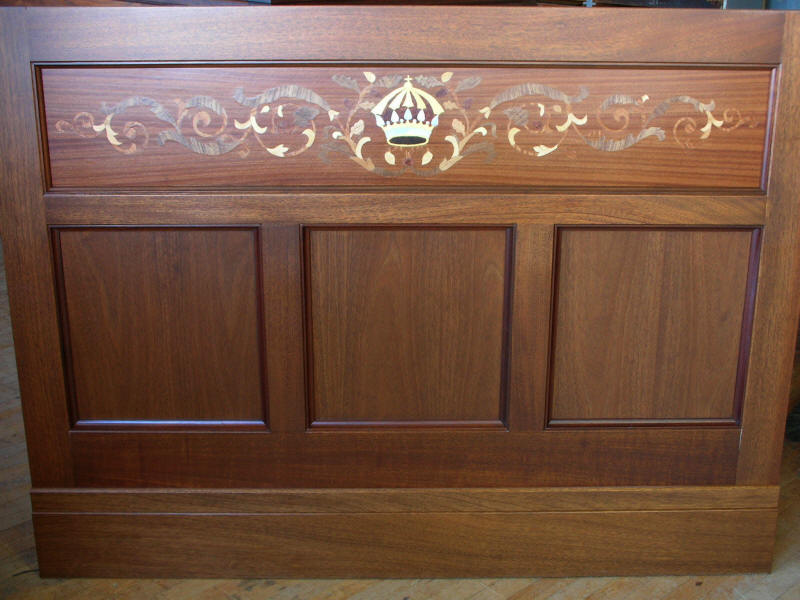

The console center back panel was based on the design found on the bed of
Queen Emma, wife of King Kamehameha IV. It is she who is credited with the

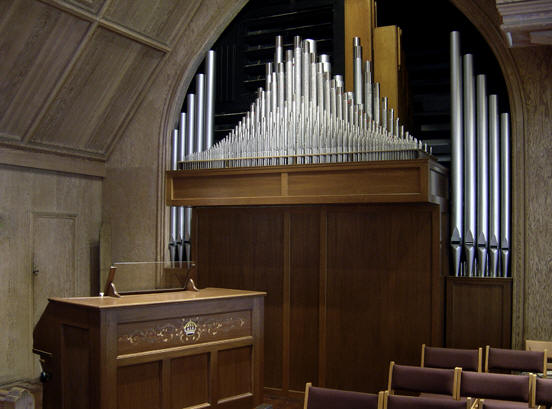

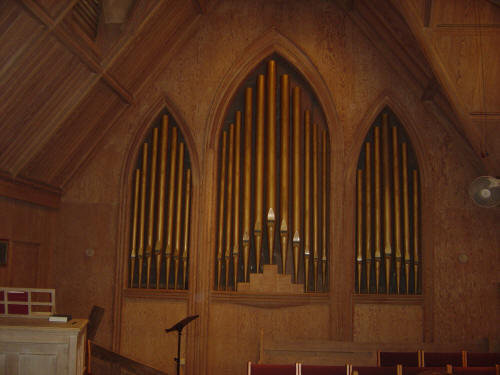

Original 1942 Facade treatment (all
non-speaking pipes from original organ)
AIRBOX Renovation Progress
Mike Fazio working on the regulator

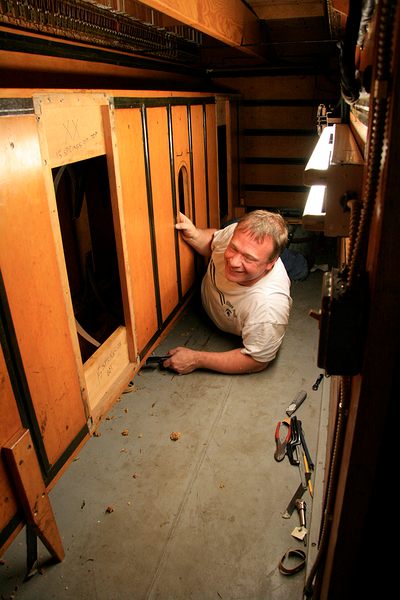

Victor Hoyt replacing trackers and manual motors in the enclosed Great
Organ

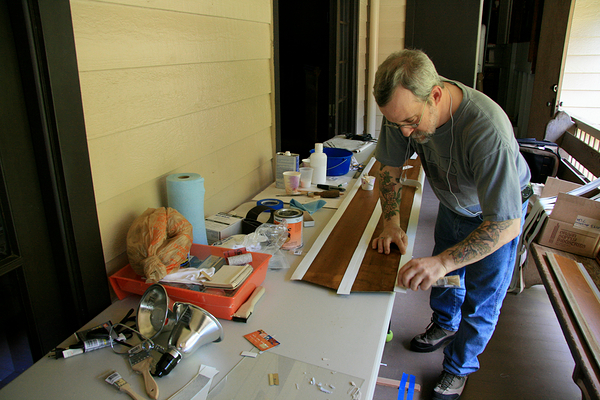

Victor releathers regulator folds in our on-site workshop
Colin Coderre stripping out old DCC wire

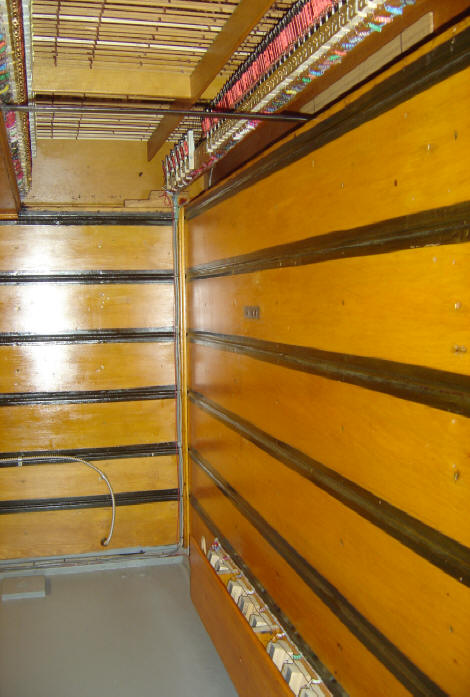

Same area after re-finishing with fresh shellac

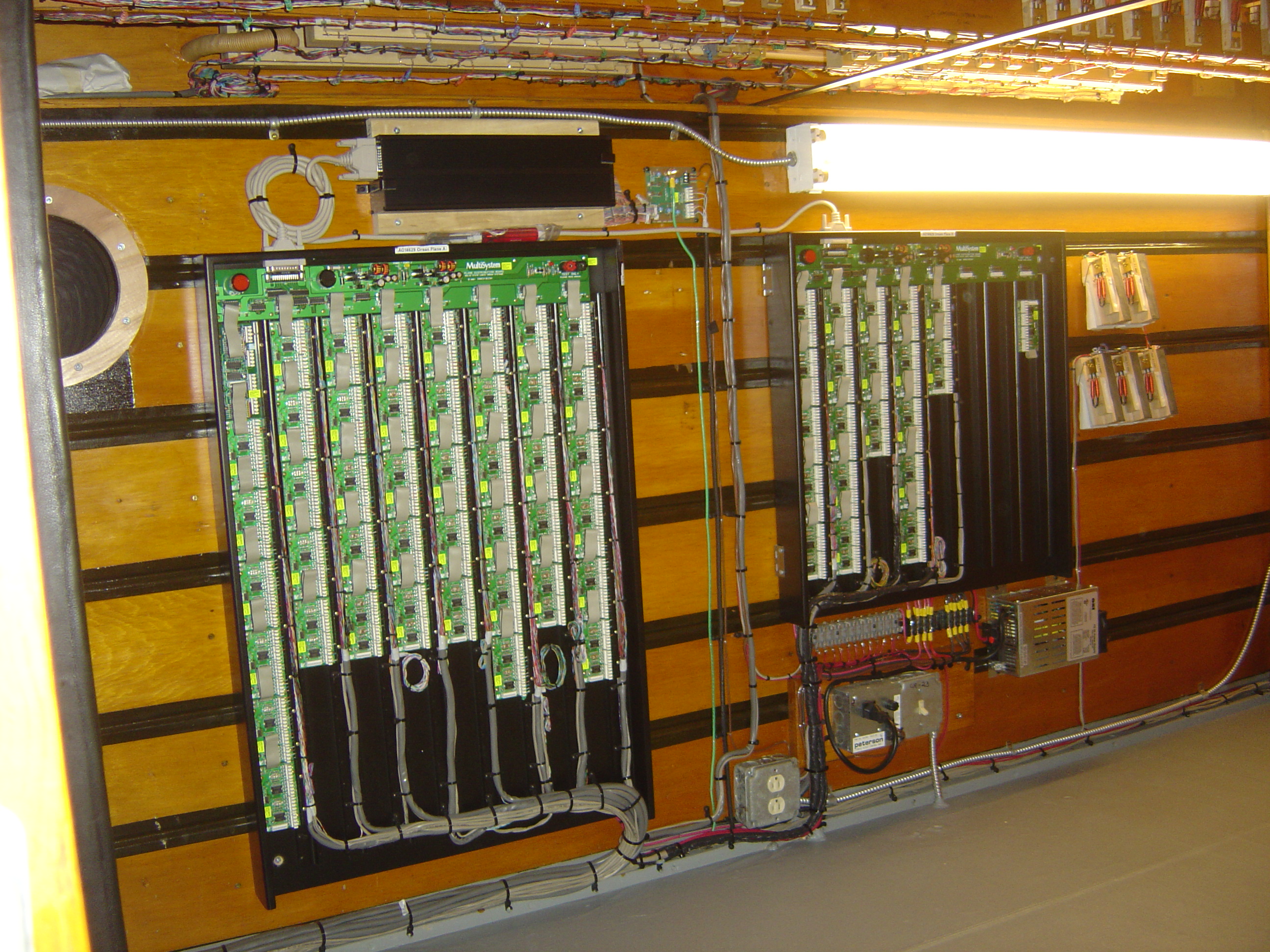

Solid State Control System

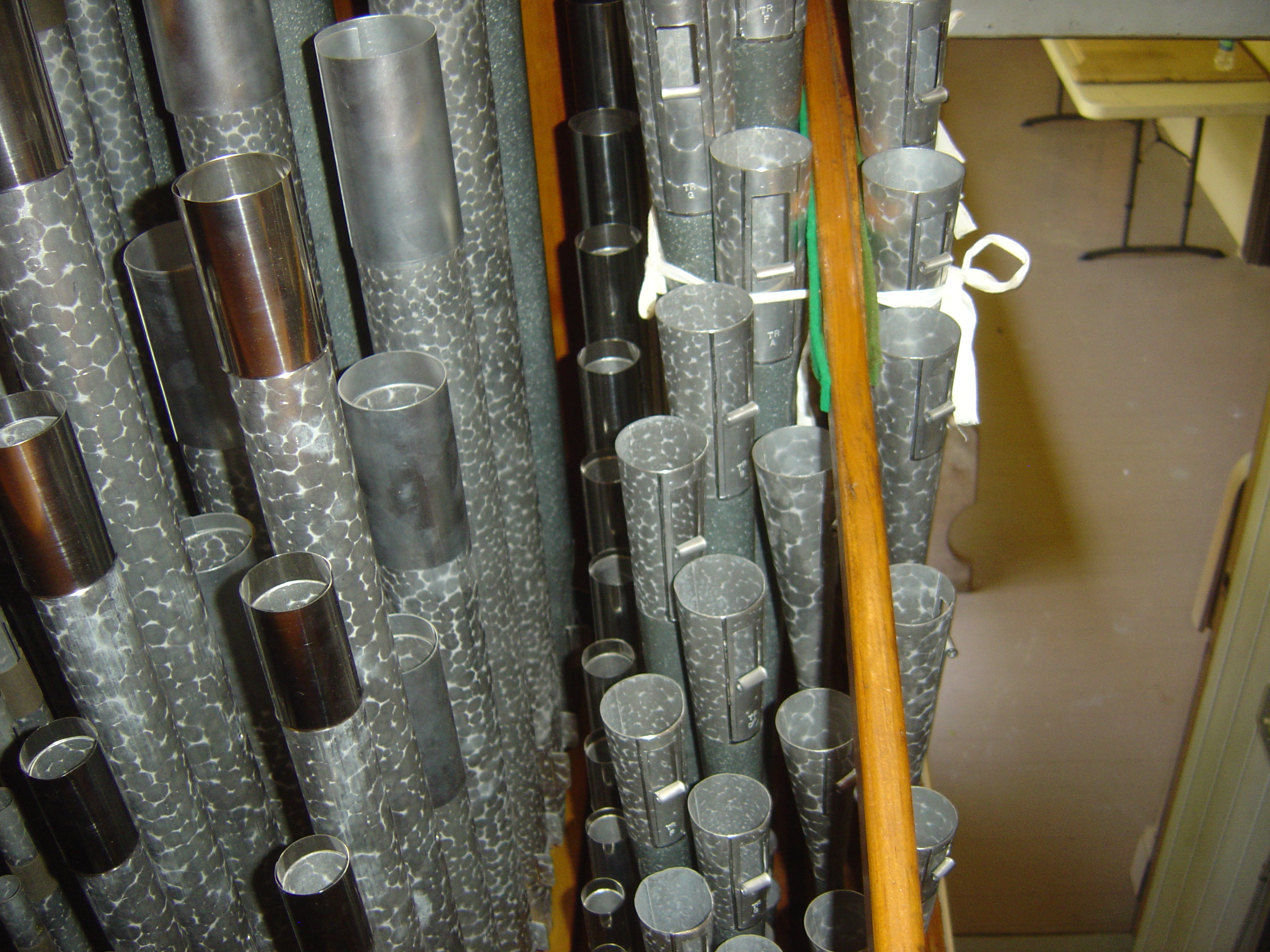

Swell Organ Pipework
This instrument was originally installed in 1942. Sixty years later, it was
overdue for mechanical and tonal renovation.
16' Gemshorn (extension)
8' Open Diapason
8' Bourdon
8' Harmonic Flute *
8' Gemshorn *
4' Principal
4' Flute Douce *
2' Fifteenth
11/3' Fourniture, III
8' Tromba *
16' Bourdon
8' Geigen Diapason
8' Viole de Gambe
8' Viole Celeste
8' Concert Flute
4' Octave
4' Harmonic Flute (ext.)
16' Double Trumpet (12 note ext.)
8' Trumpet
8' Oboe
Tremulant (Austin Fan)
8' Rohr Flute (wood)
8' Dulciana
8' Unda Maris
4' Chimney Flute (metal)
2 2/3' Nazard (Dulciana ext.)
2' Flageolet (Dulciana ext.)
8' Clarinet
Chimes
Tremulant (Austin Fan)
32' Resultant
16' Contra Bass (open wood)
16' Bourdon
16' Gemshorn (Gt)
8' Octave
8' Bourdon
4' Choral Bass
16' Trombone (full length)
16' Double Trumpet (Sw)
8' Trumpet (Sw)
8' Tromba (Gt)
4' Clarion (Gt)
propagation of the Anglican faith in the Islands. The Daughters of Hawai`i
generously allowed us access to photograph and scale the headboard, which
was then reproduced for the center panel on the back of the console in marquetry;
the inlay of seven different species of wood, genuine mother-of-pearl and 24
karat gold leaf. This work was completed by master craftsman Frank Lerose.
